Our product range includes a wide range of universal testing machines (UTM): FIE universal testing machines, mechanical, electronic, servo controlled, computer controlled and digital UTMs, six column UTMs and electromechanical UNITEK models. We are leading dealers of universal testing machines in India, with sales, service and calibration from Delhi, Kolkata, Ahmedabad, Chennai, Kerala and our other regional offices.
A universal testing machine performs tension, compression, bend, shear and transverse tests on one frame, which makes it the core equipment of steel plants, TMT bar mills, fastener and wire makers, civil engineering labs and research institutes. As a UTM machine supplier in India we help you select the right capacity, grips and controls, and keep the machine calibrated to IS 1828 and ISO 7500-1.
Choose a type to see every model with features, datasheets and an instant enquiry option.

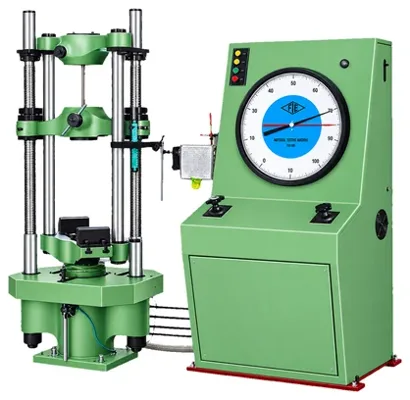

The UTN mechanical universal testing machine performs tension, compression and transverse tests with a continuous-roll autographic load-elongation recorder.

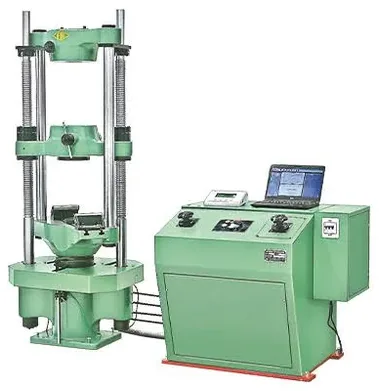

The UTE series digital universal testing machines perform tension, compression, transverse and bend tests with digital or touchscreen display of load and elongation.

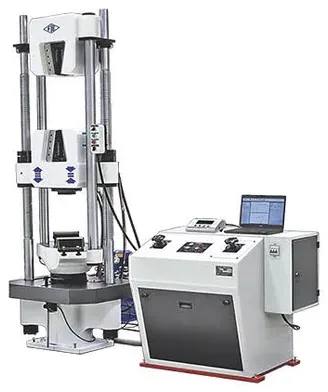

HGFL universal testing machines clamp the specimen with hydraulic grips loaded from the front, which makes specimen changes faster and safer and reduces slippage on ribbed bars.

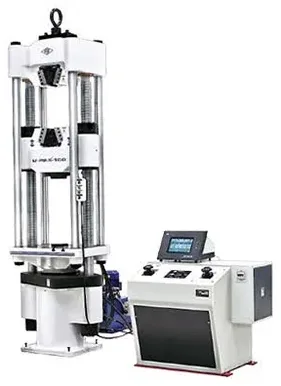

The U MAX six column universal testing machine uses four pillars and two lead screws for a stiffer, more stable frame.

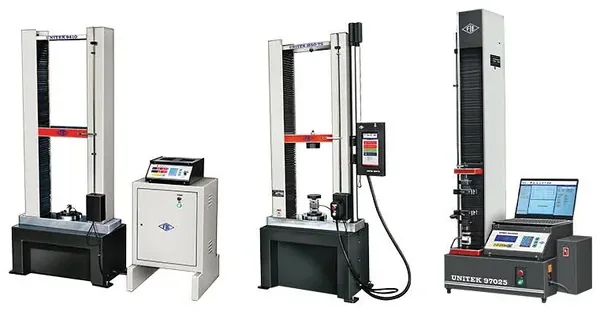

UNITEK electromechanical universal testing machines are screw-driven tensile testers with a precision AC servo drive and ball lead screw.

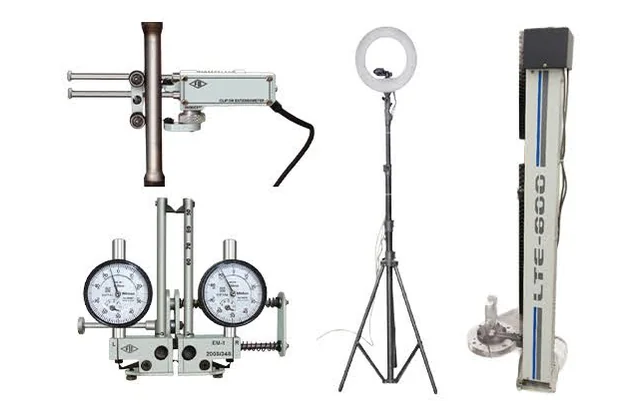

Mechanical and electronic extensometers for tensile and universal testing machines. Supply, spares and calibration in India.
Also see: Hydraulic UTMFIE UTMTensile Strength
Know the machine
A universal testing machine (UTM) applies a controlled tensile or compressive force to a specimen and records load against elongation. With the right grips and attachments, one machine performs tension, compression, bend, shear and transverse tests, which is why the UTM is the core equipment of every materials laboratory.
Hydraulic UTMs use a hydraulic cylinder to reach high forces and are the standard choice for TMT bars, plates and structural steel. Electromechanical UTMs use a servo motor and ball screw for precise, lower-force testing of plastics, rubber, wires and thin metals. Digital, touchscreen and servo controlled versions add digital records, graphs and controlled loading rates required by test standards.
| Hydraulic UTM | Electromechanical UTM | |
|---|---|---|
| Typical capacity | 100 kN to 1000 kN and above | 100 N to 100 kN |
| Drive | Hydraulic cylinder | Servo / stepper motor with ball lead screw |
| Best for | Steel bars, TMT, plates, structural and heavy specimens | Plastics, rubber, wires, foils, textiles, small components |
| Our models | UTE / UTES, UTE HGFL, U MAX, UTN | UNITEK-9700, UNITEK-9400, UNITEK-1600 TS |
Complete range: Digital, servo, hydraulic-grip and six column hydraulic UTMs, electromechanical UNITEK models and the mechanical UTN.
Genuine FIE, Saroj and Diamond Tools machines with factory warranty and support.
The first company in India accredited by NABL for calibration of material testing machines.
Our own engineers install, commission and train your operators, then service the machine for life.
Indenters, test blocks, grips and wear parts from ready stock for quick replacement.
Head office in New Delhi, 6 regional offices and 5 more offices across India.
Trusted by automotive, steel and engineering majors, IITs, NITs and test laboratories.
Listed for guidance. Confirm the exact standard and edition required by your customer or specification.
A universal testing machine (UTM) applies tensile or compressive force to a specimen and measures load and elongation, so one machine can perform tension, compression, bend, shear and transverse tests.
It depends on the largest bar diameter and grade. For example, a 32 mm Fe 500D bar can need well over 400 kN, so 600 kN or 1000 kN machines are common in TMT plants. Share your sizes and grades and we will recommend a capacity.
UTN is a mechanical UTM with an autographic recorder. UTE adds electronic digital display and PC connectivity. UTES is servo controlled for precise strain or stress rates.
Yes, we are an authorised prime dealer of FIE. See FIE universal testing machines.
Yes. We provide UTM calibration services as per IS 1828 and ISO 7500-1 from our NABL accredited laboratory.
